A turbo, short for turbocharger, is a forced induction device that uses exhaust gas energy to compress the air going into the engine. If you are searching for "what is turbo" or "turbocharger what is it", the simple answer is this: a turbo helps an engine breathe more air than it could naturally pull in by itself.

What does a turbo do in a car? It pushes denser air into the cylinders. More air means more oxygen, and more oxygen allows the engine to burn more fuel in a controlled way. That is how a turbocharged engine produces more torque and power from the same engine size.

This is why modern petrol and diesel cars rely so heavily on turbocharging. A smaller turbo engine can often produce the real-world performance of an older, larger engine, while staying more efficient during normal driving. It is also why turbocharged engines respond so well to a properly written Stage 1 ECU remap: the ECU can recalibrate boost pressure, fuelling, torque request and safety limits together.

BSG Automotive works with turbocharged petrol and diesel vehicles across North and West London, including Harrow, Uxbridge, Ealing, Hounslow, Barnet and surrounding areas. This guide explains the system in plain English, but with the mechanical detail that actually matters.

1. Why Turbocharging Is Needed

An engine makes power by burning fuel and air inside the cylinders. The key part is oxygen. The more oxygen the engine can get into each cylinder, the more fuel it can burn properly, and the more torque it can produce.

On a naturally aspirated engine, the cylinders fill using atmospheric pressure and the downward movement of the piston. That creates a natural limit. The volume of each cylinder is fixed by the bore and stroke of the engine, so without forced induction there is only so much air that can enter on each intake stroke.

A turbocharger changes the density of the air. The cylinder volume stays the same, but the air going into it is compressed. That means a fixed-size cylinder can receive more oxygen than it would in a naturally aspirated engine of the same capacity.

More oxygen allows the ECU to add more fuel while keeping the air-fuel mixture under control. Burning more fuel per cycle creates higher cylinder pressure, which turns into more torque at the crankshaft.

That is the basic reason turbocharging exists: more useful engine output without simply making the engine bigger. For road cars, the benefit is strong low and mid-range torque. For tuning, the benefit is headroom. If the turbo, intercooler, fuelling system and gearbox can support it, a properly written Stage 1 remap can release a noticeable amount of performance that was held back by the factory map.

2. What Does a Turbo Do in a Car?

A turbocharger is an air pump driven by exhaust gas.

It has two main sides. The hot side is the turbine side, where exhaust gas leaves the engine and spins the turbine wheel. The cold side is the compressor side, where fresh air is pulled in, compressed and pushed towards the engine.

The turbine wheel and compressor wheel are connected by a shared shaft. When exhaust gas spins the turbine, the compressor spins at the same time. That compressor wheel draws air through the intake system and raises its pressure before it reaches the cylinders.

The turbo itself does not add fuel. It adds air. The ECU then decides how much fuel, boost, ignition timing, injection timing and torque the engine should run based on sensor data, driver demand and built-in protection limits.

The simple version is:

  1. Exhaust gas spins the turbine.
  2. The turbine spins the compressor through a shaft.
  3. The compressor pressurises the intake air.
  4. The intercooler cools that pressurised air.
  5. The engine receives more oxygen per intake stroke.
  6. The ECU adds the right amount of fuel.
  7. The engine produces more torque and power.

The compromise is response. A turbocharger needs exhaust flow to build speed. At very low RPM, before there is enough exhaust energy, there can be a short delay between pressing the throttle and feeling full boost. That delay is turbo lag. Modern turbo systems reduce it with smaller turbine housings, twin-scroll designs, variable geometry, electronic actuators, ball bearings and, on newer mild-hybrid platforms, electrically assisted turbos.

3. How Does a Turbo Work?

The airflow path is the easiest way to understand the whole system.

1. Air filter to turbocharger inlet
Fresh air first passes through the air filter. The filter is not always shown on simplified turbo diagrams, but it matters. It removes dust and debris before the air reaches the compressor inlet of the turbocharger.

2. Compression inside the turbocharger
Inside the turbocharger, the compressor wheel pulls in that filtered air and compresses it. Compression increases the amount of oxygen in each unit of air volume. The side effect is heat. Any air compression process raises temperature, and hotter air is less dense than cooler air.

3. Turbocharger to intercooler
From the turbocharger outlet, the hot compressed air travels through boost pipework to the intercooler. The intercooler works like a radiator for intake air. It removes heat from the compressed air and largely restores its temperature.

This is not just about power. Cooler intake air is denser, so it contains more oxygen. On petrol engines, it also reduces the tendency for detonation because the future air-fuel mixture is cooler and more stable. On diesel engines, lower charge temperature helps consistency and reduces thermal stress under load.

4. Intercooler to throttle body and intake manifold
After the intercooler, the air passes through the throttle body on most petrol engines, then enters the intake manifold. From there, during the intake stroke, it goes into the engine cylinders.

The cylinder volume is fixed. What changes is density. Because the cylinder is now filled with compressed air, the amount of oxygen inside it is significantly higher than it would be in a naturally aspirated engine. That extra oxygen allows more fuel to be burned per stroke, and burning more fuel in a controlled way increases engine output.

5. Combustion to exhaust manifold
After the air-fuel mixture burns in the cylinder, the exhaust stroke pushes the hot gas into the exhaust manifold. Exhaust gas temperatures vary by engine type, load and calibration, but under load they can be several hundred degrees Celsius and may reach roughly 500°C to 1100°C in demanding conditions.

6. Exhaust manifold to turbine
This hot, high-energy exhaust gas enters the turbine housing. As it passes through the turbine, it spins the turbine wheel. The turbine wheel drives the compressor wheel on the other side of the shaft, so part of the exhaust energy is used to compress the next portion of intake air.

7. Exhaust gas leaves the turbo
After passing through the turbine, the exhaust gas has lower pressure and lower temperature because some of its energy has been transferred through the turbine shaft to power the compressor. The remaining gas then exits through the downpipe, catalytic converter, DPF on diesel engines where fitted, silencers and tailpipe.

The full path looks like this:

Air filter -> turbocharger compressor -> intercooler -> throttle body -> intake manifold -> cylinders -> exhaust manifold -> turbocharger turbine -> exhaust system.

4. Turbo Components: Main Parts of a Turbocharger System

A turbo system is more than one metal snail-shaped part on the side of the engine. It is a complete air, exhaust, oil, coolant, sensor and ECU control system.

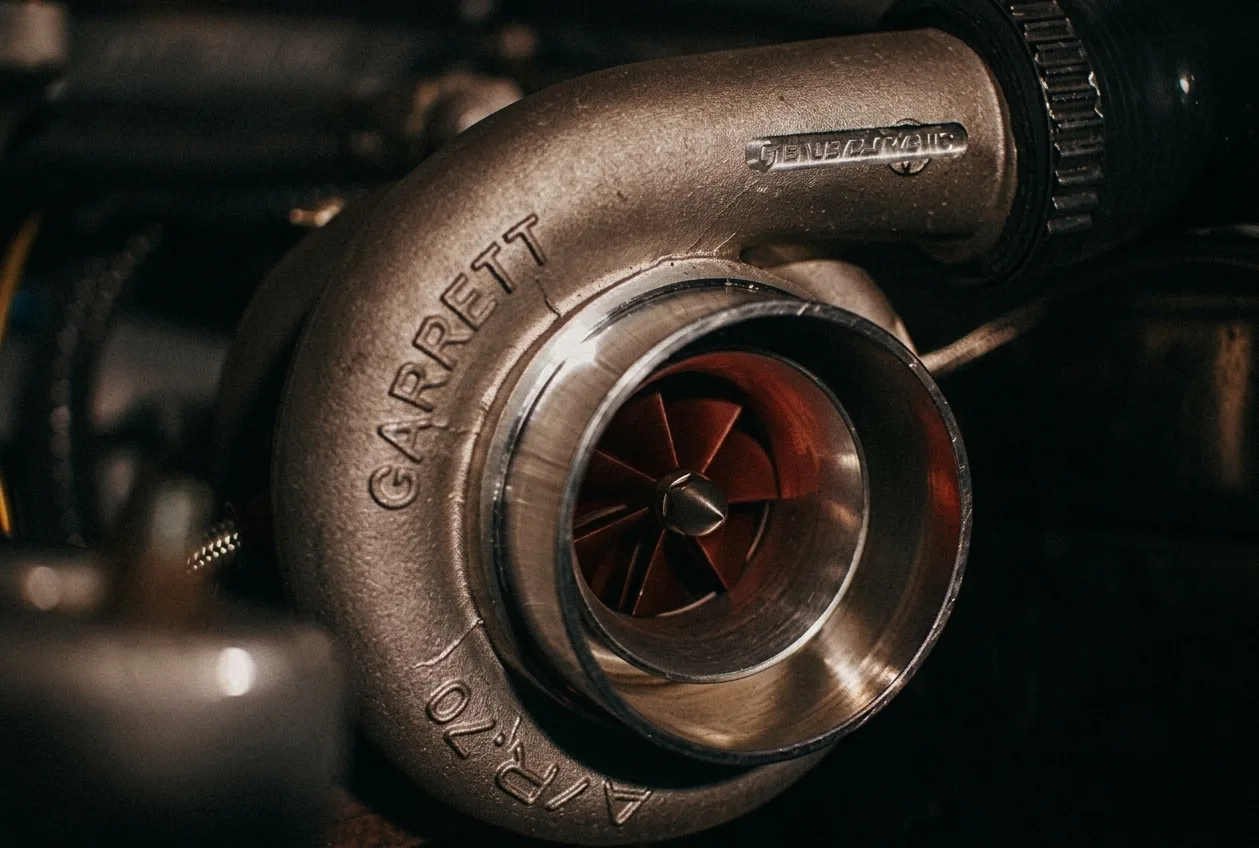

Turbocharger
The main assembly. It includes the turbine wheel, compressor wheel, shaft, bearing housing and hot/cold housings.

Compressor wheel
The intake-side wheel. It pulls in filtered air and compresses it before sending it into the boost pipework.

Turbine wheel
The exhaust-side wheel. Hot exhaust gas spins it at extremely high speed, driving the compressor through the shared shaft.

Shaft and bearings
The shaft connects both wheels. Because it spins at very high speed, clean oil supply is critical. Many modern turbos also use coolant to manage heat in the centre housing.

Compressor housing
The cold-side housing that guides air into and out of the compressor wheel.

Turbine housing
The hot-side housing that directs exhaust gas onto the turbine wheel. It is built from heat-resistant material because exhaust temperatures are high.

Air filter and intake pipework
The air filter cleans incoming air. The intake pipework supplies the compressor. A blocked filter, cracked intake hose or poor aftermarket intake can reduce performance and increase turbo workload.

Exhaust manifold
Collects exhaust gas from the cylinders and sends it into the turbine housing. On twin-scroll engines, the manifold separates exhaust pulses to improve turbine response.

Intercooler
Cools the compressed air after it leaves the turbo. A weak intercooler can cause high intake temperatures, inconsistent power and increased knock risk on petrol engines.

Throttle body
Controls airflow into the intake manifold on most petrol engines. When the throttle closes suddenly under boost, the air pressure in the pipework has to be managed.

Intake manifold
Distributes the pressurised air into the cylinders. Leaks, swirl flap faults or carbon build-up can affect how evenly air reaches each cylinder.

Boost pipes
Carry pressurised air between the turbo, intercooler, throttle body and intake manifold. Split boost pipes are a common cause of underboost, smoke on diesels and poor acceleration.

Wastegate
A boost control valve that allows some exhaust gas to bypass the turbine. When the wastegate opens, less exhaust energy reaches the turbine wheel, so turbine speed and boost pressure are limited.

Actuator
Moves the wastegate or variable geometry mechanism. It can be vacuum-operated, pressure-operated or electronic. Electronic actuators are faster and more precise, but they also need accurate calibration.

Boost control solenoid
Allows the ECU to regulate boost by controlling the pressure or vacuum signal sent to the actuator.

Diverter valve / bypass valve
Used mainly on turbo petrol engines. When the throttle closes, it redirects excess boost pressure back into the intake system. This helps protect the compressor from surge and keeps the turbo spinning smoothly between gear changes.

Blow-off valve
A blow-off valve releases excess boost pressure into the atmosphere when the throttle closes. This is what creates the well-known "psshh" turbo sound on many modified petrol cars. The sound is part of the appeal, but the valve has to suit the engine management system. On some MAF-based cars, venting already-metered air to atmosphere can cause rough running, rich fuelling or hesitation.

MAP sensor
Measures manifold absolute pressure. The ECU uses it to monitor boost pressure and engine load.

MAF sensor
Measures the mass of air entering the engine where fitted. It is important for fuelling accuracy on many factory ECU strategies.

Oil feed and oil return lines
Supply oil to the turbo bearings and return it to the engine. Poor oil supply, blocked return lines or infrequent oil changes can destroy a turbo quickly.

Coolant lines
Used on many modern turbos to control heat and protect the bearing housing, especially after hard driving.

ECU calibration
The software strategy that controls boost targets, torque limits, fuelling, ignition timing, injection timing, exhaust temperature protection and limp-mode thresholds. This is why boost should never be increased in isolation. A proper calibration adjusts the system as a package.

5. Types of Turbo: Common Turbocharger Layouts

Different turbo layouts solve different problems. Some are designed for fast response, some for peak airflow, and some for emissions and efficiency across a wide operating range.

Single turbo
One turbo supplies the whole engine. It is the most common layout because it is simple, compact and effective. The compromise is that turbo sizing always balances low-RPM response against high-RPM flow.

Twin-turbo
Two turbochargers are used. On V6 and V8 engines, each turbo often feeds one cylinder bank. This can support higher power while keeping each turbo smaller and more responsive.

Sequential twin-turbo
A smaller turbo handles low RPM response, then a larger turbo joins in or takes over as engine speed rises. It can give a strong power band, but the control system and pipework are more complex.

Twin-scroll turbo
A twin-scroll turbo uses two separate exhaust channels inside the turbine housing. This preserves exhaust pulse energy and helps the turbine spool faster, improving low and mid-range torque.

Variable geometry turbo / VGT / VNT
A variable geometry turbo uses adjustable vanes inside the turbine housing. At low RPM, the vanes narrow the exhaust passage and speed up gas flow onto the turbine. At higher RPM, they open to reduce restriction. This is extremely common on modern diesel engines and increasingly relevant in advanced petrol applications.

Electric turbo / electrically assisted turbo
An electric motor helps accelerate the compressor before exhaust gas energy is strong enough. This reduces lag and is becoming more common with 48V mild-hybrid systems.

Hybrid turbo
A hybrid turbo is usually based on the original turbo housing but upgraded internally with a larger compressor wheel, stronger bearings or improved turbine design. It is common in higher-stage builds where the owner wants more airflow without completely redesigning the engine bay. If you are comparing software-only tuning with hardware upgrades, read our guide to Stage 1, Stage 2 and Stage 3 tuning.

6. Common Turbo Problems and Symptoms

Turbochargers are reliable when the engine is serviced properly, but they are sensitive to heat, oil quality, boost leaks and poor calibration.

  • Whining or siren noise: possible bearing wear, compressor damage or intake leak.
  • Blue smoke: oil entering the intake or exhaust side, often from worn seals or blocked oil return.
  • Black smoke on diesel: boost leak, over-fuelling, EGR/DPF issues or poor calibration.
  • Underboost fault codes: split boost pipe, actuator problem, sticking VNT vanes, weak vacuum supply or sensor fault.
  • Overboost fault codes: sticking wastegate, sticking VNT mechanism, actuator issue or incorrect mapping.
  • Flat acceleration: boost leak, clogged air filter, tired turbo, weak fuel system or ECU torque limiter intervention.

Before any remap, the car should be checked properly. Increasing boost on a weak turbo or a car with existing boost leaks is asking for problems. A healthy turbo system can handle a sensible calibration. A tired one needs repair first.

7. Turbocharging and ECU Remapping

Turbocharged engines respond better to remapping than naturally aspirated engines because there is boost pressure to work with. On a healthy turbo petrol or diesel engine, a Stage 1 remap typically improves torque, throttle response and mid-range pull without requiring hardware changes.

But more boost is not the full answer. A professional map adjusts boost pressure targets, wastegate or VNT actuator control, fuel quantity, injection timing, ignition timing on petrol engines, torque limiters, smoke limiters on diesel engines, exhaust temperature protection and gearbox torque limits where relevant.

This is the difference between proper ECU remapping and a crude boost increase. The turbo, intercooler, fuelling, sensors and gearbox all need to stay inside sensible limits. BSG Automotive carries out diagnostics before tuning and keeps the calibration matched to the vehicle, not just the engine code. If you are choosing between a plug-in device and proper software, see our breakdown of tuning boxes vs ECU remaps.

If you are considering tuning a turbocharged car, start with the basics: no boost leaks, fresh oil, clean filters, healthy injectors, correct fuel grade and no stored faults. Then the remap has a proper foundation.

8. Frequently Asked Questions

What is a turbo in simple terms?

A turbo is an exhaust-driven air compressor. Exhaust gas spins a turbine, the turbine spins a compressor, and the compressor pushes denser air into the engine.

Is a turbo the same as a turbocharger?

Yes. In normal car language, "turbo" is simply the short name for a turbocharger.

What does a turbo do in a car?

A turbo compresses intake air so more oxygen fits into each cylinder. That lets the engine burn more fuel properly and produce more torque and power.

How does a turbo work?

Exhaust gas spins the turbine side of the turbo. The turbine drives the compressor side, which pressurises fresh intake air before it goes through the intercooler and into the engine.

What are the main turbo components?

The main turbo components are the turbine wheel, compressor wheel, shaft, bearings, turbine housing, compressor housing, wastegate or VNT mechanism, actuator, intercooler, boost pipes and ECU sensors.

What types of turbo are used in cars?

The main types of turbo are single turbo, twin-turbo, sequential twin-turbo, twin-scroll turbo, variable geometry turbo, electrically assisted turbo and hybrid turbo.

Does a turbocharger use more fuel?

Under boost, yes, because the engine can burn more fuel to make more power. During normal driving, a small turbo engine can be efficient because it produces useful torque without needing a large engine capacity.

What does the intercooler do?

The intercooler cools the compressed air after it leaves the turbo. Cooler air is denser and more stable, which helps power, consistency and reliability.

Why does a turbo car make a pssh sound?

That sound usually comes from an atmospheric blow-off valve releasing excess boost pressure when the throttle closes. Factory diverter valves often recirculate that pressure quietly instead.

Is turbo lag still a problem?

Modern turbo systems have much less lag than older setups, but it has not disappeared completely. Turbo size, turbine design, boost control, gearbox behaviour and ECU calibration all affect response.

Can a remap damage a turbo?

A poor remap can. A professional remap on a healthy engine keeps turbo speed, boost pressure, fuelling and exhaust temperature within sensible limits. Diagnostics before tuning are essential.

9. Conclusion

A turbocharger is one of the most effective ways to make an engine breathe harder without simply increasing engine size. It uses energy from hot exhaust gas to spin a turbine, which drives a compressor on the intake side. That compressor pushes denser air into the cylinders, giving the engine more oxygen to burn more fuel and produce more torque.

The important point is balance. The turbocharger is only one part of the system. The air filter, compressor, intercooler, throttle body, intake manifold, exhaust manifold, turbine, wastegate, actuator, sensors, oil supply and ECU calibration all have to work together.

That is why turbocharged engines respond so well to proper ECU remapping, and why they respond badly to shortcuts. When boost, fuelling, timing, torque limits and safety strategies are calibrated properly, the car does not just make a bigger number on paper. It pulls harder, responds better and remains usable every day.

BSG Automotive provides mobile ECU diagnostics and Stage 1 remapping across North and West London. For related tuning topics, see our guides to car tuning stages, tuning boxes vs ECU remaps and what to modify first on a car.
